Berylas Medical Laser – Class IV Laser System

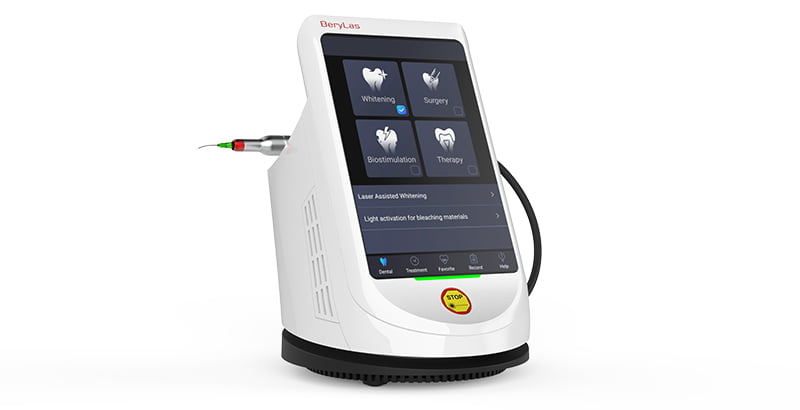

The Berylas medical laser equipment is the newest Class IV grade laser available in the medical marketplace today. It includes the optimal range of wavelengths, with interchangeable handpiece optics, this laser can be used to perform in dentistry, dermatology, endovenous laser treatment (EVLT), ENT, PLDD, DEEP Tissue Therapy, podiatry, hemorrhoids and so on.

Dual: 15W 810nm + 15W 980nm
Quad: 200mW 650nm + 9W 810nm + 9W 915nm + 9W 980nm

Product Features

High Quality Injection Mould Body Case

Integrated injection molding by high quality engineering plastics, provide the body case with high strength, not easy to break by impact or drop. The details are very good of high dimensional accuracy, High color saturation, high gloss.

User-Friendly Medical Maser Of Large Color Touch Screen

Full color high resolution 600*1024 pixel, 7 inches LCD panel. The extra-large viewing area provides a smooth, quick and effortless touch experience, while guaranteeing reliability, readability and safety. The screen brightness can be customized and adjusted for each operating environment.

Internal Rechargeable Lithium Battery

Built-in lithium battery, it can support continuous working at least 4 hours even without the power support.

Advanced Heat Management

Through hundreds of thermal analysis simulation, even with upgrade 30W power, it can continue working at least 4 hours without overheating problem.

Multi-Wavelength Combination

With advanced design, we can combine 1-4 wavelengths 650nm/ 810nm/ 910nm/ 980nm to BERYLAS system, so it can meet wide range of clinical requirements. The 7 inches LCD panel and high resolution 600*1024 pixel offers easy operation experience.

Upgrade 30W(15wats+15watts Simultaneous), Meeting More Clinical Requirements

Breakthrough technology, the first upgrade to the 30W power, Berylas becomes the world’s smallest high-power laser surgical equipment, to meet your broader laser surgery requirements.

High Power Optimal Therapeutic/Surgical Wavelength

Each diode is wavelength specific and Berylas medical laser equipment provides a single or multi wavelength 650nm/ 810nm/940nm/980nm/1064nm to fully meet your needs for a variety of applications like spider vein removal, nail fungus treatment, dentistry, Percutaneous Laser Disc Decompression, laser pain relief, veterinary and so on.

Expert System With Over 1000 Programs

Except the standard system, BERYLAS can be ordered with different operation systems like therapy for human body or treatments for veterinary, the operation system clearly shows the treatment steps, and the typical treatment technical datas are presetted and also can be customized. When the users want to change the system, the software can be updated or changed through a TF card.

Clinical Treatments

With the optimal range of wavelengths and up to 30W power, Berylas is capable to perform in different medical conditions.

Product Specifications

Laser TypeBerylas GaAIAs Diode Laser
Maximum Power9W10W15W10W15W+15W200mW+9W+9W+9W
Operation ModeCW, Single Or Repeat Pulse
Pulse Duration10us- 3s
Repetition Rate0.2Hz- 50KHz
Pilot BeamRed Diode Laser Of 650nm, Power<5mW
Control ModeTrue Color Touch Screen (7 inches, resolution 600*1024)
Transmission SystemMedical Fibers With SMA905 Connector
Dimensions160(W)*180(L)*235(H) mm
